What is the function of Locking Rear Differential in a vehicle? How the Rear Differential locks?

Locking Rear Differential

The torque transmitted by the bevel gear differential to each of the rear wheels remains equal even when they are rotating at different speeds. due to this reason, if one wheel is on a slippery surface, Mud, loose dirt or sand, the wheel on the solid ground will not be driven while the other spins around idly due to the differential action. One wheel offers less resistance and turns faster causing a loss of friction. therefore there must be some arrangement by which more torque can be transmitted to one wheel which is gripping the road than the other wheel which is slipping on the road.

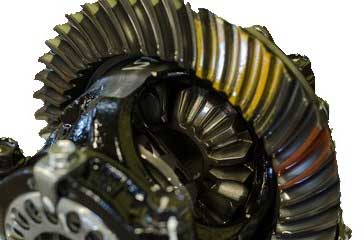

Locking Rear Differential
Locking Rear Differential
This is done sometimes by introducing friction in intentionally in the differential. Another method of avoiding the sleeping wheel problem is to provide a differential lock. when the lock is applied, the differential action is stopped and the whole torque is then applied to the wheel which is gripping the road. The truck differential is usually provided with the devices to lockout the differential to obtain better friction under difficult operating conditions. several designs of Differential have been developed that will not permit differential action unless both the wheels have friction.

Locking Rear Differential
The sectional view of Locking Rear Differential.

Locking Front Differential

Front Differential Locked: currently, it gets real. If you lock the front differential, and therefore the center differential, not solely will equal powerhead to the front and rear shaft, however, each front wheels should flip at an equivalent rate because of the rear shaft. Now, if each rear wheels have traction and one front wheel has traction, the vehicle can move forward. However, if each front wheels lose traction, and one rear wheel loses traction, wheel spin. you'll be able to see the probabilities of wheel spin decreasing.

Rear diff lock:

Front and Rear Locked: currently, with the middle, front and rear differential barred, all four wheels should spin at an equivalent time. Now, if only 1 wheel has traction, the truck can move forward. If all four wheels lose traction, wheel spin. At now, its jack and winch time.

Full Locking Differential

If all four wheels lose traction at the identical time, otherwise you are thus stapled that the total power of your engine won't rotate the tires, it’s jack and winch time (a subject for one more article). Thus it called as a full locking differential.

Full locking differential
full locking differential.

Types of Locking Rear Differential

There are two types of  differential locking mechanisms:
  1. Automatic locker.
  2. Selectable or manual locker.

Automatic Lockers

Automatic lockers lock and unlock mechanically with no direct input from the motive force. Some automatic protection differential styles make sure that engine power is usually transmitted to each wheel, despite traction conditions, and can "unlock" only if one wheel is needed to spin quicker than the opposite throughout cornering. These would be a lot of properly termed "automatic unlocking" differentials, as a result of their at-rest position is bolted. they'll ne'er enable either wheel to spin slower than the differential carrier or shaft as an entire, however, can allow a wheel to be over-driven quicker than the carrier speed. the foremost common example of this sort would be the renowned "Detroit Locker," created by Eaton Corporation, additionally called the "Detroit No-Spin," that replaces the whole differential carrier assembly. Others, typically spoken as "lunchbox lockers," use the stock differential carrier and replace solely the inner spider gears and shafts with interlocking plates. each kind of automatic lockers can provide a degree of differential wheel speed whereas turning corners in conditions of equal traction, however, can otherwise lock each shaft shafts along once traction conditions demand it.

Cons: inflated tire wear and noticeable impact on driving behavior. throughout cornering, that half-axle is unconnected relies on force directly applied by the driveline. once the force direction is reversed, the speed of the driveline is suddenly forced to alter from the inner to the outer shaft, in the middle of tire chirping and an outsized jerk. throughout cornering, the automated locker is characterized by serious understeer that transitions instantly to power oversteer once traction is exceeded.
Some other automatic lockers operate as an open differential till wheel slip is encountered and so they lock up. This vogue usually uses an enclosed governor to watch vehicle speed and wheel slip. Associate in Nursing example of this is often the Eaton Automatic protection Differential (ALD), or Eaton Automatic Differential Lock (ADL), developed by the Eaton Corporation and introduced in 1973 for GM's Rounded-Line C/K Series pickups and utilities. The Eaton ADL is usually incorrectly known as the "Gov-Lok", despite neither weight unit nor Eaton ever career it by that name. Each Eaton and weight unit don't apprehend wherever the name came from, and Eaton has created many unsuccessful tries within the past to roast the Gov-Lok name. Associate in Nursing updated version of the recent Eaton ADL style continues to be on the market from Eaton, currently called the Eaton mLocker mechanical differential lock.

Some other automatic lockers operate as Associate in Nursing open differential till high force is applied and so they lock up. This vogue usually uses internal gears systems with terribly high friction. Associate in Nursing example of this is often the ZF "sliding pins and cams" on the market to be used in early Volkswagens.
Locking Rear Differential
Locking Rear Differential

Selectable Lockers

Selectable lockers enable the motive force to lock and unlock the differential at the can from the driver's seat. this will be accomplished in some ways.

Compressed air (pneumatics).
Cable operated mechanism as is utilized on the "Ox Locker."
Electronic solenoids and (electromagnetics) like Eaton's "ELocker." However, OEMs square measure starting to supply electronic lockers additionally. Nissan Corporation's electrical locker will be found as facultative instrumentality on the Frontier (Navara) & Xterra.
Pros: permits the differential to perform as Associate in Nursing open differential for improved driveability, mobility, provides full protection capability once it's fascinating or required.
Cons: automatically complicated with a lot of components to fail. Some lockers need the vehicle to prevent engagement. desires human interaction and forward-thinking concerning forthcoming track. Unskilled drivers usually place huge stress on driveline parts once exploit the differential in bolted operation on track not requiring a locker.

Animation view of the Rear Locking Differential working concept.


A spool may be a device that connects the 2 axles on to the ring gear. there's no differentiation side to side, thus a vehicle equipped with a spool can bark tires in turns and should become unmanageable in wet or snowy weather. Spools are typically reserved for competition vehicles not driven on the road.[4]

Mini-spool uses the stock carrier and replaces solely the inner parts of the differential, similar in installation to the lunchbox locker. A full spool replaces the whole carrier assembly with one machined piece. A full spool is maybe the strongest means that of lockup AN shaft, however, has no ability to differentiate wheel speeds some, putt high stress on all affected driveline parts.

The internal spider gears of AN open differential can even be welded along to make a fast axle; this technique isn't suggested because the attachment method seriously compromises the scientific discipline composition of the welded parts, and might result in failure of the unit below stress. If it's fascinating to own a spooled shaft, the higher choice is to put in either a mini-spool or a full spool.


Because they are doing not operate as swimmingly as commonplace differentials, automatic locking differentials are usually liable for magnified tire wear. Some older automatic locking differentials are illustrious for creating a clicking or banging noise once lockup and unlocking because the vehicle negotiates turns. this can be annoying to several drivers. Also, automatic locking differentials can have an effect on the flexibility of a vehicle to steer, significantly if a locker is found within the front shaft. other than tire scuffing whereas turning any degree on high friction (low slip) surfaces, fast axles provoke understeer and, if used on the front shaft, can increase steering forces needed to show the vehicle. what is more, mechanically locking differentials will cause a loss of management on ice wherever AN open differential would enable one wheel to spin and also the difference to carry, whereas not transferring power. An example of this is able to be a vehicle position sideways on a slippery grade. once the spin of each wheel, the vehicle can break traction and give way the grade.


Limited-slip differentials are thought of a compromise between a typical differential and a locking differential as a result of they operate additional swimmingly, and that they do direct some additional force to the wheel with the foremost traction compared to a typical differential, however they're unable of 100% lockup.

Traction management systems are employed in several trendy vehicles either additionally or as a replacement for locking differentials. Examples are by Volkswagen's electronic differential lock (EDL), Wilhelm von Opel's TC+ put in for the primary time in Opel Astra G (2001), etc. this can be not in truth a differential lock, however, operates at every wheel. Sensors monitor wheel speeds, and if one is rotating quite some (e.g. 100) revolutions per minute quite the opposite (i.e. slipping) the traction system momentarily brakes it. This transfers additional power to the opposite wheel,[5] however still employs the open differential, that is that the same as on cars while not the EDL choice. If all drive wheels lose traction, then throttle management could also be mechanically applied. Electronic traction management systems could also be integrated with anti-lock braking systems, that have the same action on braking and use some similar parts. Such systems are used for instance on the foremost recent Nissan scout, Land Rover Defender, Land Rover Freelander, the McLaren P1 and also the McLaren 650s.

Practical working view of Rear Locking Differential.


Race cars usually use locking differentials so as to keep up traction throughout high-speed maneuvers or once fast at extreme rates. in addition, vehicle dynamics are created additionally foreseeable once there's a loss of traction because the driver is aware that neither wheel can suddenly sap power if it encounters a low-friction surface.
Some utility vehicles like tow trucks, forklifts, tractors, and serious instrumentation use locking differentials to keep up traction, particularly once driving on soft, muddy, or uneven surfaces. Locker's ar are common in agricultural instrumentation and military trucks. On some farm tractors, there's a pedal which will be stepped on with the operator's heel to lock the differential as required.
Four-wheel drive vehicles that drive cross-country usually use a lockup differential to stay from obtaining stuck once driving on loose, muddy, or rocky piece of land. locking differentials are thought of essential instrumentation for serious cross-country driving. several such vehicles have a locking differential on the central differential (between the front and rear axles), rear differential and front differential; or any combination of any of the 3. Differential locks are used on some "non-utility" four-wheel-drive vehicles (such because the Mitsubishi Shogun) to catch up on a relative lack of shaft articulation (vertical wheel movement). High amounts of articulation are fascinating for cross-country driving, to permit the wheels to keep up ground contact over uneven surfaces, however, this will result in excessive body-roll at high speeds on the road, still as imprecise steering. Such 4x4s usually have suspension systems designed as a compromise between articulation and handling. If articulation is prescribed, one wheel on AN shaft could also be raised off the bottom by a rough piece of land, therefore losing all traction to all or any wheels (all power goes to the raised wheel, that spins freely). A rear locking differential is commonly equipped to create up for this compromise – if a wheel is raised off the bottom, the locking differential is often brought into play, driving the wheel that is still on the bottom.
